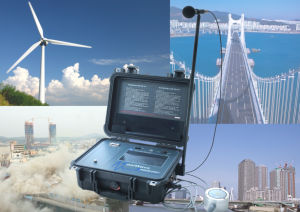

Blast & Environmental Vibration Analyser (SV1)

Blast Analyzer is a rugged device for measuring sound and vibration caused due to environmental factors or man-made explosions, for e.g. in Mines. It is a Class-1 device that boasts of versatile software applications to measure and record the Blast/Environment sound and vibration monitoring and analysis on the portable rugged system. This data can be exported for post-processing and regression analysis.

SV1 is based on Smart phone technology with versatile application software to measure the Blast/Environment Vibration & Sound monitoring and analysis on the portable rugged system.

Applications

Blast Monitoring
Pile Driving
Construction Field
Bridge Monitoring
Power Plant Monitoring
Building Vibration Monitoring

Blast Vibration & Sound Measurement	Environmental Vibration & Sound Measurement
Provide the influence evaluation data nearby Structure : 3axis peak and PVS(mm/sec) Vibration Measuring Range : 255 mm/sec Frequency Range : 0.5 ~ 100Hz for each channels (up to 500Hz) Vibration Accuracy : Less than 1% Vibration Resolution: 0.01 mm/sec Vibration Measuring Sample Rate: 1024 samples/sec Storage Sample Rate: 1024 samples/sec Sound Measuring Range: 35 ~ 142 dBA Frequency Range : 0.5 Hz ~ 8000 Hz Sound Accuracy : IEC 60651 Type2 Sound Data : Simultaneously Lmax, Lmin, LeqLn, LeqAv Record Time : 1 to 10 sec, up to 30 minutes, wave Form, Combo & Manual Mode.	Measurement Results : Instantaneous Sound Leq, Lmax, Lmin, Statistic Vibration Level L5, L10, L50, L90, L95 Vibration Frequency Range : 0.5 ~ 100 Hz (up to 500Hz) Vibration Measuring Range : 1. 37 ~ 146 dB (± 2g Full Scale) 2. 46 ~ 156 dB (± 6g Full Scale) Sound Measuring Range : 35 ~ 142 dBA Sound Frequency Range : 20 Hz ~ 8000 Hz Dynamic Range : more than 120 dB Selectable Measuring Time :1sec, 2sec, 3sec, 5sec, 10sec, 1min, 5min, 30min, 1hr, 8hr, 1day, User definable set up Vibration Trigger Level : set up with 1 dB step from 45dB (to measure the wanted Vibration And Sound Level) Measuring Mode : Selectable Manual, Single, Continuous mode Data Storage Capacity : SD Memory Card 4GB (Continuously 60days for the measurement data including Graph)

Blast Vibration & Sound Measurement

Environmental Vibration & Sound Measurement

Provide the influence evaluation data nearby Structure : 3axis peak and PVS(mm/sec)
Vibration Measuring Range : 255 mm/sec
Frequency Range : 0.5 ~ 100Hz for each channels (up to 500Hz)
Vibration Accuracy : Less than 1%
Vibration Resolution: 0.01 mm/sec
Vibration Measuring Sample Rate: 1024 samples/sec
Storage Sample Rate: 1024 samples/sec
Sound Measuring Range: 35 ~ 142 dBA
Frequency Range : 0.5 Hz ~ 8000 Hz
Sound Accuracy : IEC 60651 Type2
Sound Data : Simultaneously Lmax, Lmin, LeqLn, LeqAv
Record Time : 1 to 10 sec, up to 30 minutes, wave Form, Combo & Manual Mode.

Measurement Results : Instantaneous Sound Leq, Lmax, Lmin, Statistic Vibration Level L5,
L10, L50, L90, L95
Vibration Frequency Range : 0.5 ~ 100 Hz (up to 500Hz)
Vibration Measuring Range :
1. 37 ~ 146 dB (± 2g Full Scale)
2. 46 ~ 156 dB (± 6g Full Scale)
Sound Measuring Range : 35 ~ 142 dBA
Sound Frequency Range : 20 Hz ~ 8000 Hz
Dynamic Range : more than 120 dB
Selectable Measuring Time :1sec, 2sec, 3sec, 5sec, 10sec, 1min, 5min, 30min, 1hr, 8hr, 1day, User definable set up
Vibration Trigger Level : set up with 1 dB step from 45dB (to measure the wanted Vibration And Sound Level)
Measuring Mode : Selectable Manual, Single, Continuous mode
Data Storage Capacity : SD Memory Card 4GB (Continuously 60days for the measurement
data including Graph)

Common Parameters	Remote Auto Measurement
Trigger Level : Set up from 0.1mm/sec with 0.1mm/sec step, 92dB Measuring Mode : Selectable Manual, Single, Continuous mode Selectable Measurement Time : 1sec, 2sec, 3sec, 5sec,10sec, 1min, 5min, 30min, 1hr, 1day,User definable time Data Storage Capacity: SD Memory Card 4G (Continuously 60 days for the measurement data including Graph) Measurement cycle time: no dead time	Communication Type : CDMA Modem or Internet Remote Data Transmit and Receiving time Control (To Control interval time with Hour, Min, Sec Unit) Remote Auto Control up to Max 100 measuring equipment Remote Control Trigger Level and Measurement time Possible to measure during receiving the measured data No need Reset the Equipment by the receiving error (Simultaneously the Measurement and Communication mode)

Common Parameters

Remote Auto Measurement

Trigger Level : Set up from 0.1mm/sec with 0.1mm/sec step, 92dB
Measuring Mode : Selectable Manual, Single, Continuous mode
Selectable Measurement Time : 1sec, 2sec, 3sec, 5sec,10sec,
1min, 5min, 30min, 1hr, 1day,User definable time
Data Storage Capacity: SD Memory Card 4G
(Continuously 60 days for the measurement data including Graph)
Measurement cycle time: no dead time

Communication Type : CDMA Modem or Internet
Remote Data Transmit and Receiving time Control
(To Control interval time with Hour, Min, Sec Unit)
Remote Auto Control up to Max 100 measuring equipment
Remote Control Trigger Level and Measurement time
Possible to measure during receiving the measured data
No need Reset the Equipment by the receiving error (Simultaneously the Measurement and Communication mode)

Technical Specifications

Vibration Features
System Specifications
Vibration Pc Software
How to use
User Manual
Downloads

Vibration Features

Blast/ Environmental Vibration & Noise Measurement
Vibration Measurement by JIS C 1510(dBV)
Vibration Measurement by DIN4150
Simultaneously 3-Axis Vibration Level & Sound Level Display
Simultaneously Multi-Processing & Display
Vibration & Sound measurement by Trigger Level of Vibration Level
CDMA or WiFi Communication with PC Software
7" LCD Touch Screen
Long term Data storage (4GB SD Memory card)
Report and Post Processing & Analysis(Trace & FFT) Software on PC
Check the Saved Result Data and Measurement Setup by SV1 on PC
Measured data to convert to Trace, Octave, FFT graph on PC

System Specifications

Main Specifications

Operating System	Win CE 5.0	Communication	Serial, Wireless(WiFi), CDMA Communication
CPU	PXA320 (806MHz)	USB Interface	1 Host, 1 Device
LCD	7" TFT-LCD +TSP	Power	5V, 3A
Flash memory	NAND 128MB	International protection	IP64
System Memory	DDR SDRAM 128MB	Operating temperature	-20~ 50 (-4 ~ 122)
External memory slot	SD/MMC Slot	Humidity	5% ~ 95% Non-condensing

DAQ Specifications

A/D Converter	24 Bit
Input Channel	4channel(3ch for Vibration and 1ch for Sound)
Sensor Type	IEPE
Sampling Frequency	Vibration : 1024 Hz for each channel / Sound : 16384Hz
Input Range	± 5V(peak)
Dynamic Range	Sound : 30~140 dB(50mV/Pa) Vibration : 37~146 dB(± 2g Full Scale), 46~156 dB(± 6g Full Scale)
Frequency Range	Vibration : 0.5 ~ 500Hz(3dB) / Sound : 0.5 ~ 8000 Hz(3dB)
Signal to Noise Ratio	>= 120dB

Vibration Pc Software

The user can store the measured data in SD card to do the post processing, analysis and report on PC. The user can get the report by JIS C1510 and DIN 4150 with this post processing software.

Remote Auto Measurement

Event Lists on Pc

Regression Analysis

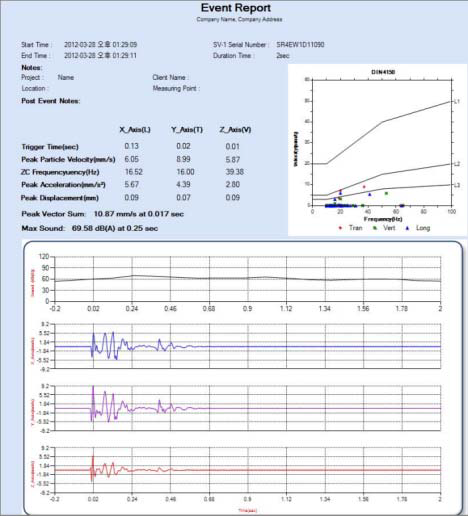

Analysis & Report Software

Time Data, Result data and DIN 4150

How to use

1.Blast & Environmental Vibration Analyser SV1 : How to use SV1 and PC software

Here is Youtube link: https://www.youtube.com/watch?v=YOUfTSKeXvY

In this video, you will learn how to measure vibration & Sound,to check vibration level and take a reading of a Vibration & Sound with the SV1 Blast/Environmental/Ground/Vibration and Sound Analyser in 5 easy steps.

Setup the SV1 at suitable place from were Measurment can be done.
Check the setting in the device and make changes as per your requirement.
After setting device, now you can measure and record the sound & vibration Data.
When recording completed next step is report printing by Pc Software.
Finally Pc software training (Blast300a).
