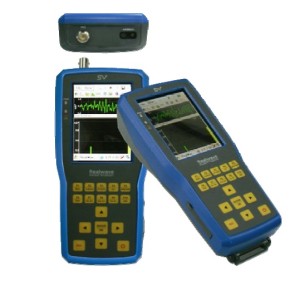

Realwave Pocket Analyzer
Handheld device measuring - The Realwave Pocket Analyzer is a Class - 1 handheld sound and vibration measurement device. It is a real-time noise and vibration measurement device that can correlate vibration analytics with other information like temperature and pressure to provide comprehensive environmental information. In addition, the data can be exported to data analytics software (via USB on a computer) for further analytics and corrective actions. In addition, the system can also export data in real-time as a Text file, Excel spreadsheet or Matlab file adding additional layers of analytical capability.
Realwave Pocket Analyzer comes in three flavours:
- One-channel
- Two-channel
- Three-channel
It was designed keeping the portability requirement in view; durable, stable and long battery life.
Realwave Pocket Analyzer can be integrated with a gamut of sensors and accessories.
Types of Vibration Analyzer
PA201-1CH Description
1-Channel Portable Sound/Vibration Analyzer- IEPE Type Accelerometer / Microphone Signal Input
- SLM (Sound Level Meter)
- VLM (Vibration Level Meter)
- SVLM (Ship Vibration Level Meter ISO 6954 : 2000)
- FFT (Fast Fourier Transform)
- OCT (FFT- based Octave Analysis)
- Spectrogram Analysis (SPEC)
- FFT – based RPM Meter (RPM)
- Frequency Range : Vibration 0.5 Hz - 16 KHz
: Sound 0.5 Hz - 20 KHz
Types of Vibration Analyzer
PA201-2CH Description
2-Channel Portable Sound/Vibration RPM and Temperature Analyzer- IEPE Type Accelerometer, Microphone Signal Input
- Infrared Temperature Sensor, Laser Type RPM Sensor
- IRD 810 Filter, Human Vibration Filter(ISO 8041)
- SLM, VLM, FFT, OCT, Spectrogram, SVLM
- Digital Filter-based Octave Analysis(DOCT)
- Laser Tachometer (Measuring Distance : 0.05 - 2m)
- IRD 810 Filter Mode (ERP Support)
- Frequency Range : 0.5 Hz - 16 KHz
Types of Vibration Analyzer
PA201-3CH Description
3-Channel Portable Vibration analyzer- Human Vibration(ISO 8041)
- Ship Vibration(ISO 6954:2000)
- Hand-Arm Vibration(ISO 5349:2001)
- General Vibration(ISO 10816) Measurement
- Digital Value, Trace, FFT, Octave Graph Display / Each Channel
- Frequency Range : 0.5 - 80Hz(Vibration Acceleration & Velocity Level)
0.5 - 8kHz(Vibration Acceleration & Velocity , Displacement Level) - Sampling Frequency : 512Hz or 8192Hz or 16384Hz
- Dynamic Range : >90dB
Technical Specifications
- Vibration Features
- System Specifications
- Vibration Software
- How to use
- User Manual
- Downloads
Vibration Features
- IEPE Microphone, IEPE Accelerometer Connection
- Time Signal Recording, Playback Function(Wave File)
- Real-time Hearing in Measuring Mode(Head Phone Option)
- Sensor Calibration : Sensitivity Calibration by S/W
- Input Signal Gain : 2, 4, 8, 16, 32, 64 Times Selectable
- Auto Scale(Y-axis) and Peak Detection
- Start Measuring Time Delay Function(pre-trigger)
- Recording Information Setup (Objective and Axis etc.)
- Measurement Configuration Saving, Loading and Recall from File
- FFT Data Recording and Comparative Analysis(ref File)
- Wave Replay and Select Part Function
- Data Export : Text, Excel, Matlab, BMP, JPEG
- Overload Detector and Alert
| Measurement Value | Units |
|---|---|
| Sound Pressure Level(Lp) | LASp, LAFp, LAIp, LBSp, LBFp, LBIp, LCSp, LCFp, LCIp, LZSp, LZFp,LZIp |
| Equivalent Noise Level(Leq) | LAeq, LAeq(avg), LBeq, LBeq(avg), LCeq, LCeq(avg), LZeq, LZeq(avg) |
| Noise Exposure Level(Le) | LAe, LBe, LCe, LZe |
| Max, Min SPL | LASmax, LASmin, LAFmax, LAFmin, LAImax, LAImin, LBSmax, LBSmin, LBFmax, LBFmin,
LBImax, LBImin, LCSmax, LCSmin, LCFmax, LCFmin, LCImax, LCImin, LZSmax, LZSmin, LZFmax,
LZFmin, LZImax, LZImin,LAeqmax, LAeqmin, LBeqmax, LBeqmin,LCeqmax, LCeqmin,LZeqmax, LZeqmin |
| Statistical Noise Level(Ln : | (Ln : L1, L5, L10, L50, L90, L95, L99, User Defined) LASn, LAFn, LAIn, LBSn, LBFn, LBIn, LCSn, LCFn, LCIn, LZSn, LZFn, LZIn, LAeqn, LBeqn, Lceqn, LZeqn |
| Peak Noise Level (Lpeak) |
LApeak, LBpeak, LCpeak, LZpeak |
System Specifications
System Specifications
| Item | Specification |
|---|---|
| System Specifications | |
| Operating System | WinCE 5.0 |
| CPU | PXA320 (806MHz) |
| LCD | 3.5” 240 * 320 TFT - LCD + TSP |
| Memory | |
| Flash | NAND 128MB |
| System Memory | DDR SDRAM 128MB |
| Expandable memory | SD Card |
| Audio Codec | AC’97 Codec |
| Speaker Amp. | 1W |
| External Memory Slot | SD/MMC Slot |
| USB | 1 Host, 1 Device |
| Input/Output Devices | |
| I/O | Head-Phone, Speaker, LED, Power etc. |
| Key | Power, Reset, Menu, Navi etc. |
| General Information | |
| Communication | Serial, Wifi |
| Power | |
| Battery | Lithium Polymer 4000mhA (Removable) |
| Battery Charger | Lithium Polymer 4000mhA (Removable) |
| Power | 5V, 3A |
| Environment | |
| International Protection | IP64 |
| Operating Temperature | -10% to +50% (+14% to +122%) |
| Storage Temperature | -30% to +70% (-22% to +158%) |
| Humidity | 5% - 95% Non-condensing |
| More Options | |
| Option | 3M CMOS Camera, 1D Bar-code Scanner, IR Temp Sensor, Laser Tacho |
DAQ Specifications
| Item | Specifications |
|---|---|
| A/D Converter | 24 BIT |
| Input Channel | 1 - 4 Channel, Tacho |
| Sensor Type | IEPE, AC, RPM, IR Temperature Sensor |
| Sampling Frequency | 32,768Hz or 51,200Hz |
| Input Range | ±5V(peak) or ±2.5V(peak) |
| Dynamic Range | 17 - 134dB (50mV/Pa x 10Gain) 37 - 160dB (50mV/g x 10Gain) |
| Input Signal Gain | 2, 4, 8, 16, 32, 64 |
| SNR | 100dB More |
| Frequency Range | 0.5 - 16kHz(3dB) or 0.5 - 20kHz(3dB) |
| Temperature | -10% to +50% |
Vibration Software

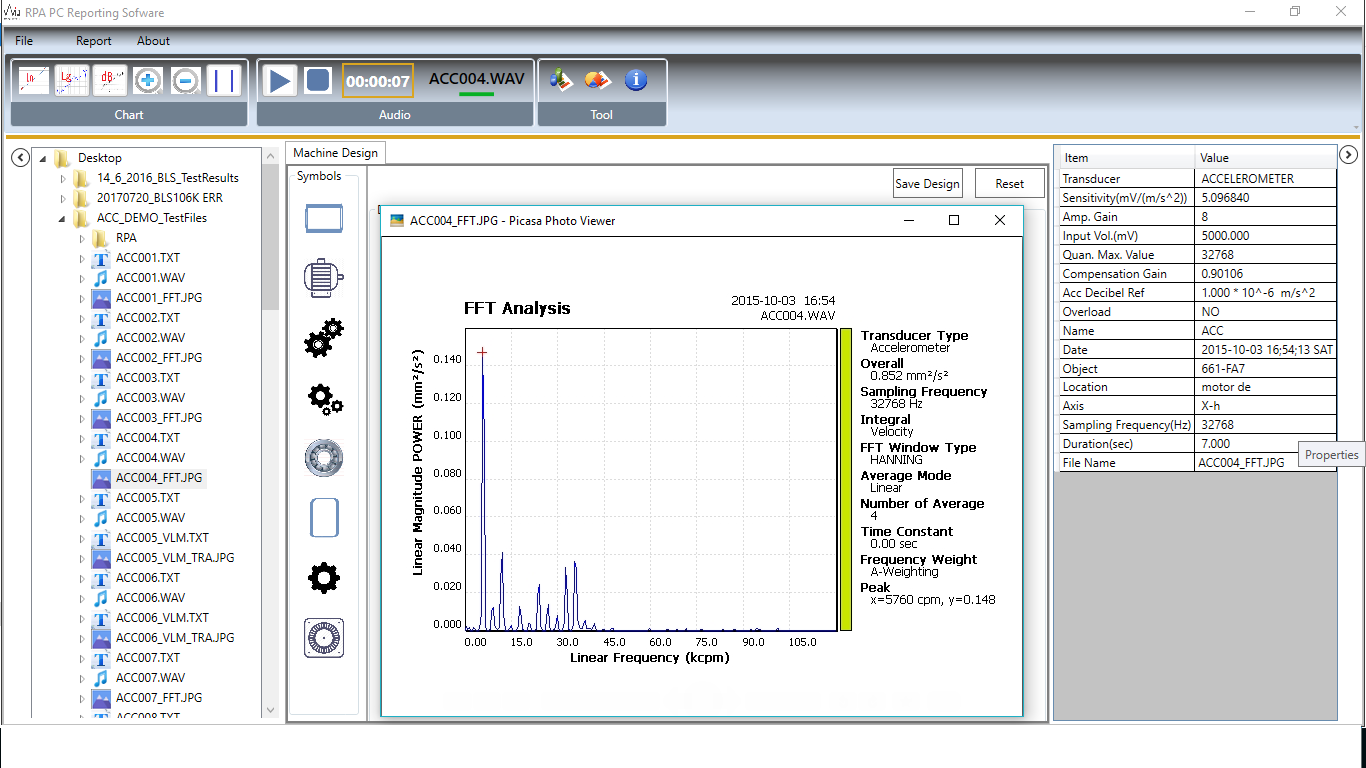

1. RPA Reporting Software : VibReport
Takes all your Vibration Data from the storage device and prints a report based on the vibration level.
It give you the status of your machinery based on ISO-2372.
For more information on the Reporting software click here
2. Condition Monitoring System :
This software gives you complete in-depth analysis of the vibration, RPM and Temperature data.
For more information on CMS software click here
.How to use
1. RPA Reporting Software : VibReport

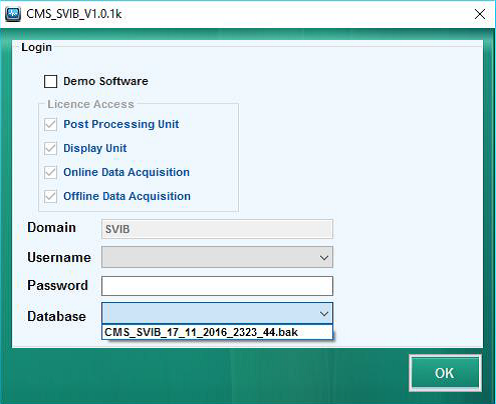

Login Test (Condition Monitoring Software)
Condition Monitoring Software Outlook
Route making for CMS
Route making for RPA
User Manual
Vibration Analyzer (PM-201) Basics Usage
Vibration/Sound Level Meter
FFT, Spectogram and Octave Analysis
Temp and Recording Options in Vibration analyzer
Downloads
| Documentation | PC Software |
|---|---|
| Device Catalouge | PC Software Version 1 |
| User Manual | PC Software Version 2 |
| PC Software User Manual |
